Butterfly Valves

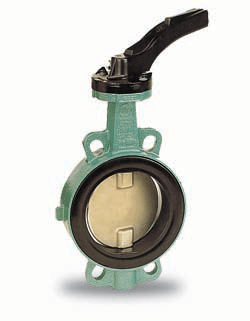

Butterfly Valve Butterfly valves are quick opening valves that consist of a metal circular disc or vane with its pivot axes at right angles to the direction of flow in the pipe, which when rotated on a shaft, seals against seats in the valve body. They are normally used as throttling valves to control flow. Butterfly valves control the flow of gas or liquid by means of a disk, which turns on a diametrical axis inside a pipe or by two semicircular plates hinged on a common spindle, which permits flow in only one direction.  These valves offer a rotary stem movement of 90 degrees or less, in a compact design.  Unlike ball valves, butterfly valves do not have any pockets in which fluids may become trapped when the valve is closed.

Butterfly valves are available in several body styles and seal types.  The flange type or lug style can be held between flanges of any type. Wafer valves are installed between two flanges using bolts or nuts and studs, while lug style valves have metal inserts installed in the valve's bolt holes and the valve is installed between two flanges using a separate set of bolts for each flange.  If the wafer style is used, avoid placing it between either slip-on or screwed flange types. Some wafer body styles will not form a proper seal. The wafer style is used more commonly and is cheaper than the lug style.

Butterfly valves offer a number of advantages when used for the proper application.  They may be used in a wide variety of chemical services, they are available with small dimensions allowing for use in areas where space is limited, and they allow a high coefficient of flow.  Conversely, the design of butterfly valve creates the disadvantage of not being easy to clean, and therefore should be avoided in situations that call for sterile, medical or food processing applications.  Additionally, some styles may have difficulty dispensing slurries.

A butterfly valve is a type of flow control device, typically used to regulate a fluid flowing through a section of pipe. The valve is similar in operation to a ball valve. A flat circular plate is positioned in the center of the pipe. The plate has a rod through it connected to an actuator on the outside of the valve. Rotating the actuator turns the plate either parallel or perpendicular to the flow. Unlike a ball valve, the plate is always present within the flow, therefore a pressure drop is always induced in the flow regardless of valve position. Butterfly valve

A butterfly valve is from a family of valves called quarter-turn valves. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the process fluid. The valve may also be opened incrementally to regulate flow.

There are different kinds of butterfly valves, each adapted for different pressures and different usage. The resilient butterfly valve, which uses the flexibility of rubber, has the lowest pressure rating. The high performance butterfly valve, used in slightly higher-pressure systems, features a slight offset in the way the disc is positioned, which increases the valve's sealing ability and decreases its tendency to wear. The valve best suited for high-pressure systems is the tricentric butterfly valve, which makes use of a metal seat, and is therefore able to withstand a greater amount of pressure.

The butterfly valve has a body, a resilient seat, a butterfly disk, a stem, packing, a notched positioning plate, and an actuator. The resilient seat is under compression when it is mounted in the valve body, thus making a seal around the periphery of the disk and both upper and lower points where the stem passes through the seat. Packing is provided to form a positive seal around the stem for added protection in case the seal formed by the seat should become damaged. To close or open a butterfly valve, the actuator is turned only one quarter turn to rotate the disk from 0° to 90°. Actuators used on butterfly valves vary based on the application and size of the valve. A simple handle oriented in the same direction of the metal disc (to indicate valve position) is common. Some larger butterfly valves may have a handwheel that operates through a gearing arrangement to operate the valve. This method is used especially where space limitation prevents use of a long handle. Acuators may also be air driven or electrically operated when used as part of an automated control system. Butterfly valves are relatively easy to maintain. The resilient seat is held in place by mechanical means, and neither bonding nor cementing is necessary, Because the seat is replaceable, the valve seat does not require lapping, grinding, or machine work.

Butterfly valves are valves with a circular body and a rotary motion disk closure member which is pivotally supported by its stem. A Butterfly valve can come in various styles including eccentric and high-performance valves. These are normally a type of valve that uses a flat plate to control the flow of water. As well as this, Butterfly valves are used on fire apparatus and typically are used on larger lines, such as front and rear suctions and tank to pump lines. A Butterfly valve is also a type of flow control device, used to make a fluid start or stop flowing through a section of pipe. The valve is similar in operation to a ball valve. Rotating the handle turns the plate either parallel or perpendicular to the flow of water, shutting off the flow. It is a very well known and well used design.

• Wafer Style Butterfly Valves

Wafer style is the more common of the two and is less expensive than the lug style. The wafer style butterfly valve is just about the standard. It ís so common that no one even bothers to use the word "wafer" when ordering a butterfly valve. They take it for granted that if they order a butterfly valve, they will get a wafer style one.

The wafer style butterfly valve is installed between two flanges. The valve is kept in place by using bolts or studs and nuts from flange to flange. This type of installation, of course, makes it impossible to disconnect just one side of the piping system from the valve. That is where the lug style valve comes in.

• Lug Style Butterfly Valves

Lug style valves have threaded inserts at both sides of the valve body. This allows them to be installed into a system using two sets of bolts and NO nuts. The valve is installed between two flanges using a separate set of bolts for each flange. This setup permits either side of the piping system to be disconnected without disturbing the other side.

A lug style butterfly valve used in dead end service generally has a reduced pressure rating. For example a lug style butterfly valve mounted between two flanges has a 150 psi pressure rating. The same valve mounted with one flange, in dead end service, has a 75 psi rating.
